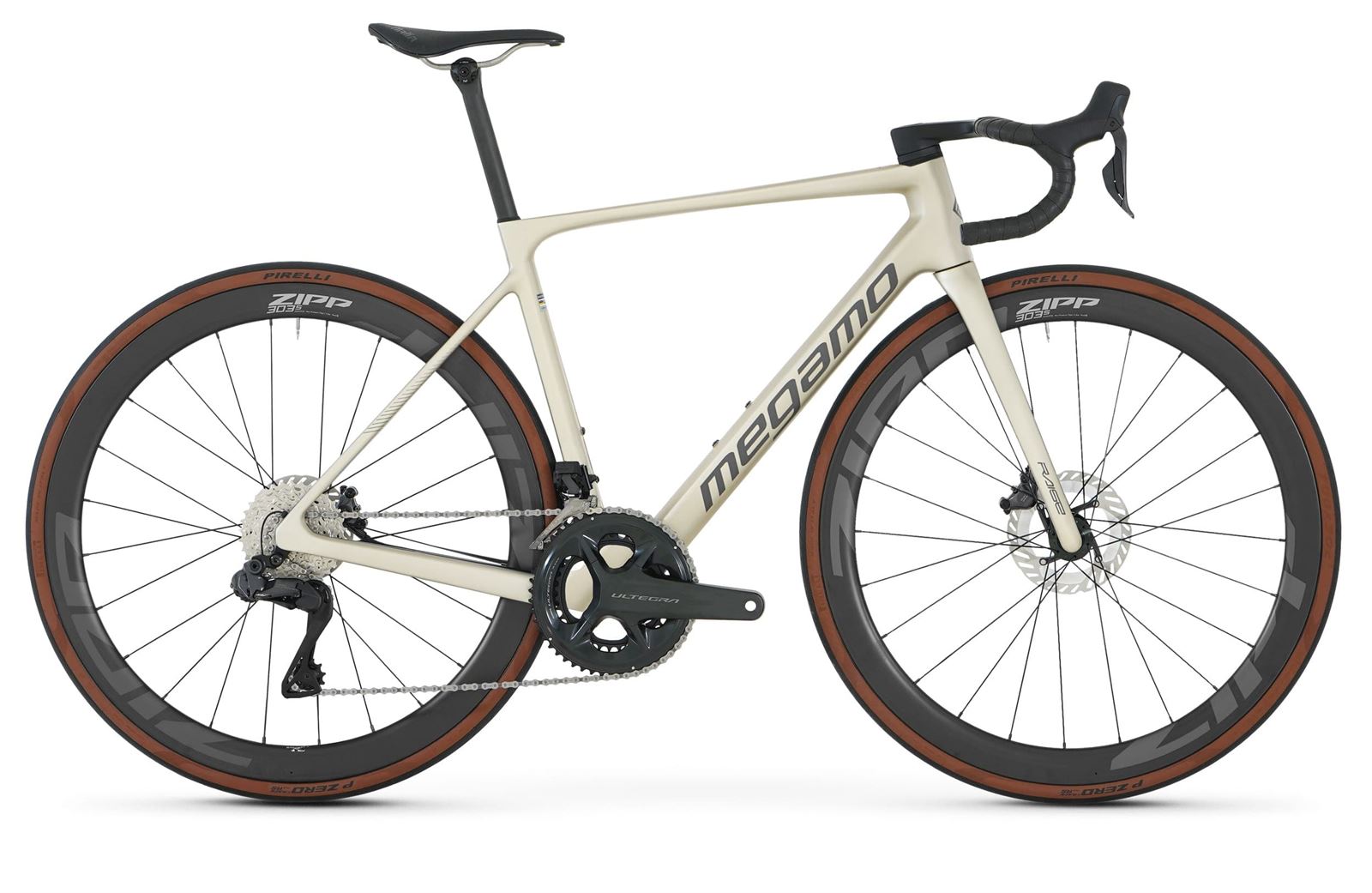

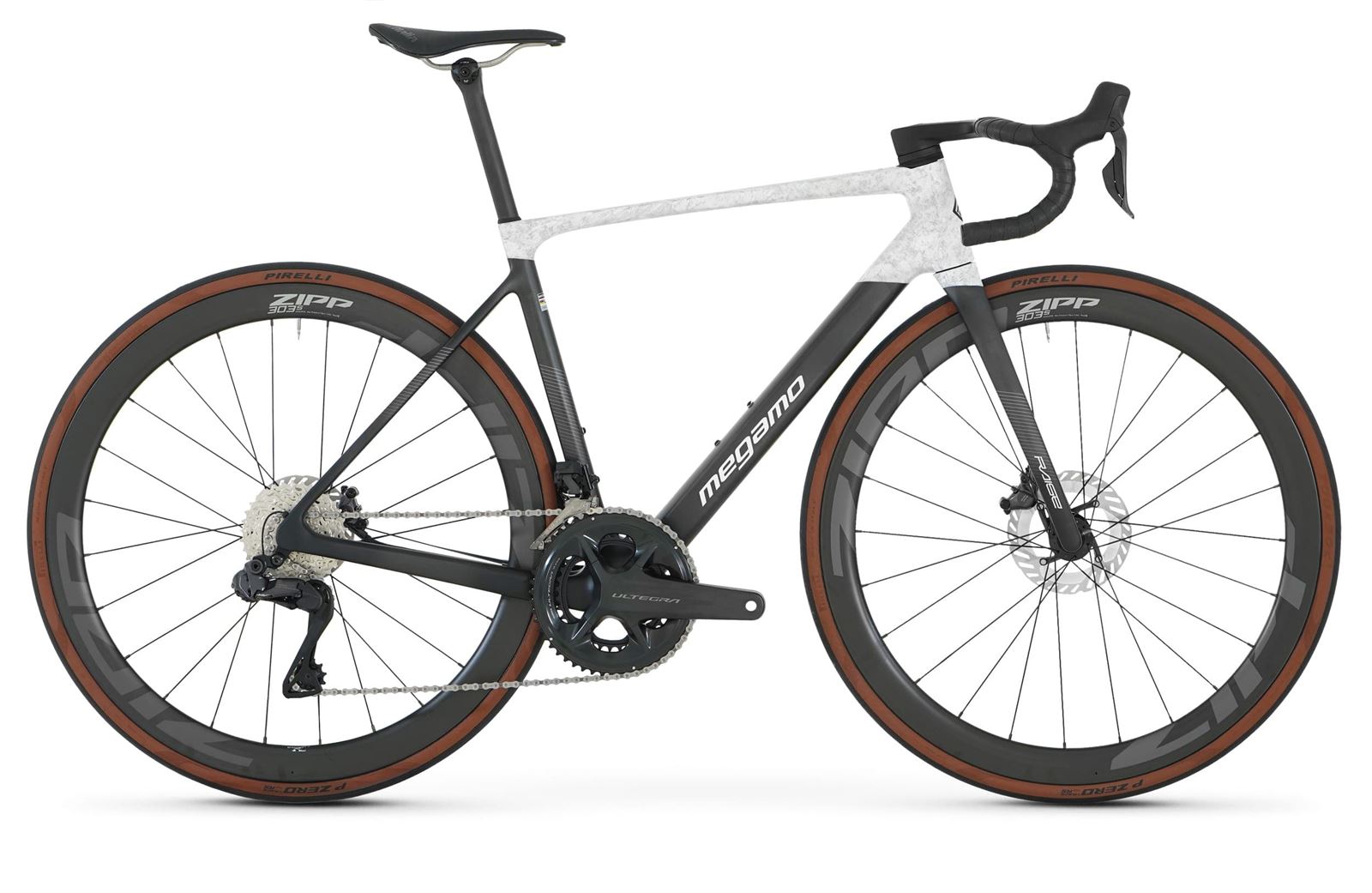

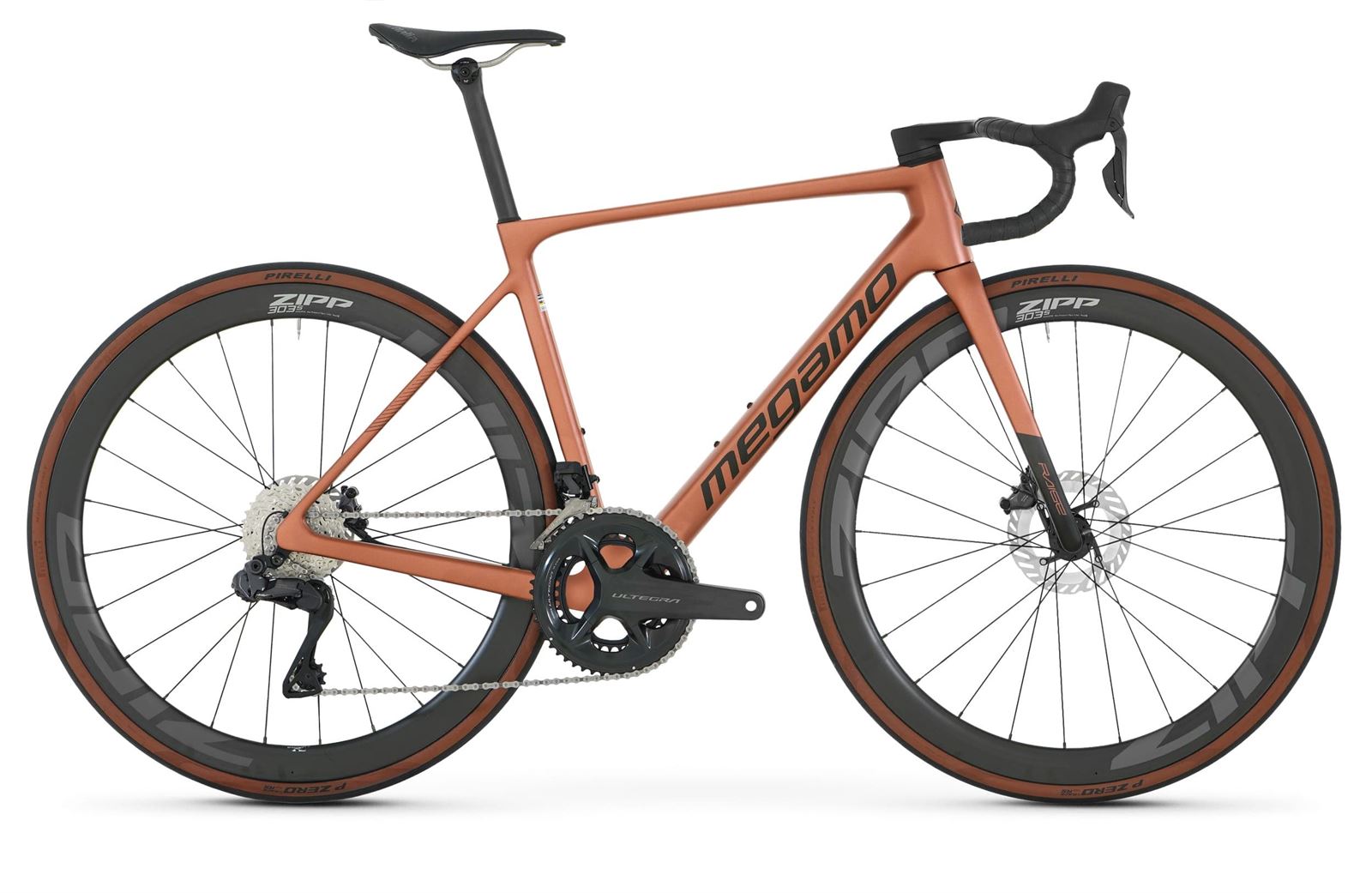

MEGAMO RAISE 05 CW 2026

CUADROAQUILA RC DISC Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X Ø41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur: Brazed-on Type Max Chainring Compatibility:58T (2x) - 62T(1X) Tire Clearance:HORQUILLABianchi Aquila Integrated Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-28mm Steer tube Diameter: 1 1/8""DIRECCIONFSA ACR Compresion Ring: 1.125 Inch silver alloy Top Bearing: Angular contact Bearing MR127 1.5"" 36°x45° Bottom Bearing: Angular contact Bearing MR127 1.5"" 36°x45°MANILLARReparto Corse by Vision Steerer Interface Diameter: 1 1/8"" HandleBar Size: 110/400 (S-M-L)ACOPLESVision JS bend Carbon comaptible with Vision TFE Extensions (not included), bridge includedTIJA DE SILLINBianchi Custom Airfoil Shape Offset: Ritchey Rail Seatpost lengths: 280mm-S, 300mm- M, 350mm-L

PLAZO DE ENTREGA: 7-10 DIASCUADROBianchi Specialissima PRO carbon HM with Bianchi CV System, only electronic groupsets, fully internal cable routing, headset Acros ICR, direct mount brakes, BB-PressFit 86.5x41 sizes 47-50-53-55-57-59HORQUILLABianchi Specialissima PRO full Carbon High Modulus aero with Bianchi CV System, integrated head, disc, 1.5 head, 12x100 mm thru axleDIRECCIONAcros IS52 Integrated Cable RoutingMANDOSShimano Ultegra Di2, shifter lever ST-R8170, caliper BR-R8170CAMBIOShimano Ultegra Di2, RD-R8150, 12spDESVIADORShimano Ultegra Di2, FD-R8150BIELAS CON POTENCIOMETROShimano Ultegra, FC-R8100, 4iiii precision 3 single side power meter, 52x36T Crank length: 165 mm (47-50 cm); 170 mm (53-55 cm); 172.5 mm (57-59 cm)CADENAShimano Ultegra, CN-M8100CASSETTEShimano Ultegra, CS-R8100 11-30T, 11-12-13-14-15-16-17-19-21-24-27-30TFRENOSShimano BR-R8170 Hydraulic disc brakeRUEDASVelomann Palladium, Carbon rim, 33 mm profile, 700x21c, 24h, HG11 bodyCUBIERTASPirelli P Zero Race SL TLR, 28-622, 120 TPIMANILLAR INTEGRADOBianchi Specialissima PRO, carbonio High Modulus, aero, con Bianchi CV System, testa integrata 1,5", perno passante 12x100 mmCINTABianchi Arrow premium tape, 2.5 mm thickness, full blackTIJA DE SILLINBianchi Specialissima, full carbon, aero shape, 20 mm offset length: 280 mm (47 cm); 300 mm (50-53 cm); 350 mm (55-59 cm)SILLINVelomann Mitora 139 Lite, open flow, Carbon rails 7x9.1 mm, Carbon-reinforced nylon shell, length 250 mm, width 139 mmDISCOS DE FRENOShimano RT-CL800 Center Lock with Ice Tech, 160 mm

Cuadro: Adrenaline - G2 Carbon Concept Lite Frame. Intermediate Modulus Carbon Fiber. Monocoque. TA 12 mm. Fully Internal Cable Routing. Flat Mount. E+ Compatible. Press Fit. HeaDT Swissube 1.5Horquilla: Adrenaline - G2 Carbon Concept Lite Fork. TA 12mm.Ruedas: XCR 10 Alloy 25 700 Road TLR DB CLJuego de bielas: Shimano 105 R7100 50/34Desviador: Shimano 105 R7100 12sCambio: Shimano 105 R7100 12sFrenos: Shimano 105 R7100 12sCassette: Shimano 105 R7100 12s 12/34Cadena: Shimano CN-M6100, 12-speedTija de sillín: Ritchey CompManillar: Ritchey Comp CurvePotencia: Ritchey SwitchSillín: Selle Italia Model Epsilon

PLAZO DE ENTREGA: 7-10 DIASFINANCIACION SIN INTERESESCUADROZolder Pro carbon cyclocross disc brake flat mount, press fit 86.5x41 headset 1.5" - 11/8", thru axle 12x142 HORQUILLAFull carbon 1.5" - 11/8", disc brake flat mount, 1.5" - 11/8", thru axle 12x100DIRECCIONFsa Orbit C-40-ACB ; NO.42/ACB, Sealed 1-1/8 ACB Top, 1.5" ACB Btm ; Standard 15mm top cover alloyMANDOSShimano Ultegra Di2 CASSETTEShimano 105 12sp 11-34T CAMBIOUltegra Di2 12sp RD-R8150BIELASShimano Ultegra 12sp FC-R8100, hollowtech 2. Medidas según talla: 170-172mm, 46x36T Crank Length: 170mm-48~54cm, 172.5mm-56~58cmPEDALIERToken Ninja Lite BB4124PS, for 24mm spindle, with premium bearings, threaded designCADENAShimano CN-M6100,12 speedFRENOSShimano BR-R8170 DISCOS DE FRENOShimano RT-CL800 center lock type w/Ice Tech, 160mm front rearRUEDASVelomann V30R, alloy, 23mm channel, 30mm profile.CUBIERTASVittoria Terreno Mix 33-622/700x33c G2.0, nylon 120TPI, TLR reinforcedPOTENCIAVelomann ST199A.2 3D Forged alloy 2014, raise - 8°, height 38mm, Oversize, 1 1/8", sandblast matt finishMedidas según talla: 90mm-48-50cm,100mm-52~54cm,110mm-56cm,120mm-58cmMANILLARVelomann RA35A Compact, Flat Top, alloy 6061 diam. 31,8mm, reach 80mm, drop 130mm,Medidas según talla: 400mm- 48~50cm; 420mm-52~58cm ,440mm-58cmCINTA MANILLARBianchi Hexagon tape, 2.5mm thickness, full blackTIJA SILLÍNVelomann SP67T.C carbon shaft UD finish, forged alloy head, 15mm offset L350mm, 27,2mmCIERRE TIJAMX-112C Aluminium clamp, light weight, 31,8mm anti-crimp, blackSILLINSelle Italia Model X SuperFlow

PLAZO DE ENTREGA: 4-5 DIASFINANCIACION SIN INTERESESCuadroRakish - G3 Carbon Concept Lite Frame. Intermediate Modulus carbon fiber. Monocoque. TA 12 mm. Internal Cable Routing. Boost. Post Mount. Press Fit. Head Tube 1.5.HorquillaRockShox SID SL base Select 15 Boost. Travel 100 mm. Fast Black. One Lock Remote. Motion Control. Tapered.Juego de ruedasRuedasMavic Crossmax Cl BoostCubiertasVittoria Saguaro TLR 29x2.25TransmisiónJuego de bielasSram GX T-Type DUB 34Eje de pedalier Manetas de cambioSram GX AXS POD Eagle 12VDesviador CambioSram GX AXS T-Type AXS Eagle 12VFrenosShimano MT-501 160/160CassetteSram GX T-Type XS-1275 10-52 12vCadenaSram GX T-Type 12VComponentesTija de sillínRitchey Comp Zero Double Fix 30.9ManillarRitchey Comp 2X Dual Position 9º Sweep 720 mmPotenciaRitchey Comp 4 AxisSillínSan Marco Shortfit Supercomfort Dynamic Wide PuñosRitchey XCR SiliconeDirecciónRitchey Pro Integrated Tapered 1.5

RAISE 20 2026CARACTERÍSTICAS PRINCIPALES· Cuadro Raise Carbon Advanced Composite Super Light UCI con cableado totalmente interno · Transmisión Shimano 105 2x12 velocidades· Ruedas Fulcrum Racing 800 DB 33.7mm CuadroCarbon Advanced Composite Super Light Frame, Full Internal Cable Routing, Flat mount disc 12x142 HorquillaCarbon Advanced Composite fork, Full Internal Cable Routing, Flat mount disc 12x100 Juego de direcciónTotally Internal Cable routing Transmisión Cambio TraseroShimano 105 R7100, Shadow 12-Speed DesviadorShimano 105 R7100, 2x12-Speed Manetas cambioShimano 105 R7120 PlatoShimano 105 R7100 Chainring 50-34T 2x12-Speed, Crankset / XS size 165 mm / S size 170 mm / M, L size 172,5 mm / XL size 175 mm CassetteShimano 105 R7101, 11-34T Frenos Conjunto de frenosShimano 105 R7120, Hydraulic disc SM-RT70 160 mm / 140 mm Ruedas CubiertasVittoria Zaffiro V 622-28 BujesFulcrum Sealed cartridge bearings, Front axle 12 x 100 mm, Rear axle 12 x 142 mm RuedasFulcrum Racing 800 DB, 33.7mm 2-Way Fit Ready Aluminium rim Componentes ManillarCarbon Full Integratted Internal Cable Routing / XS size 80 x 380 mm / S size 90 x 400mm / M size 100 x 400 mm / L size 110 x 420 / XL size 120 x 440 mm Tija sillínAerodinamic Advanced Carbon Seat Post / XS, S size 350 mm / M, L, XL size 400 mm SillínSelle Italia Model X Superflow
