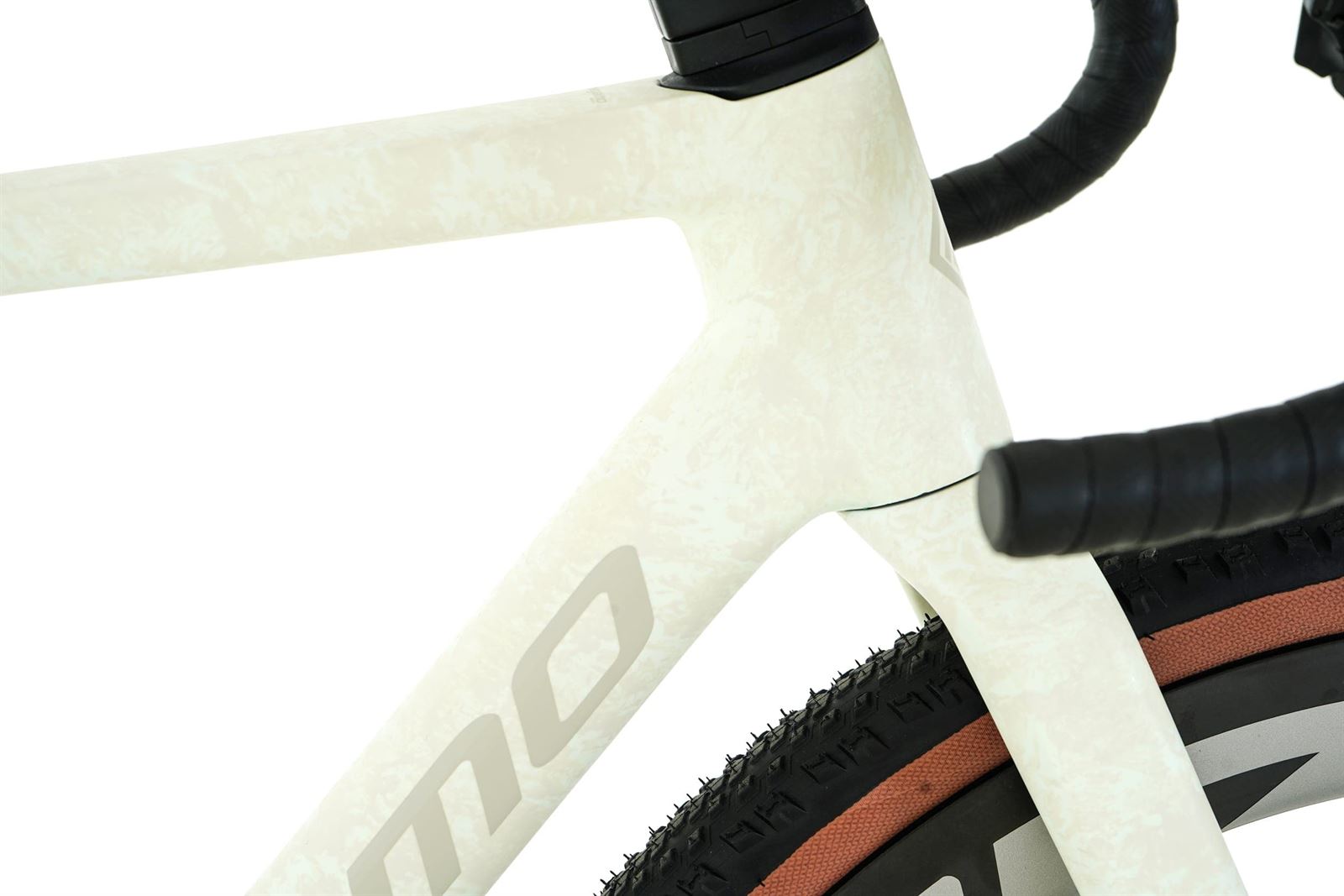

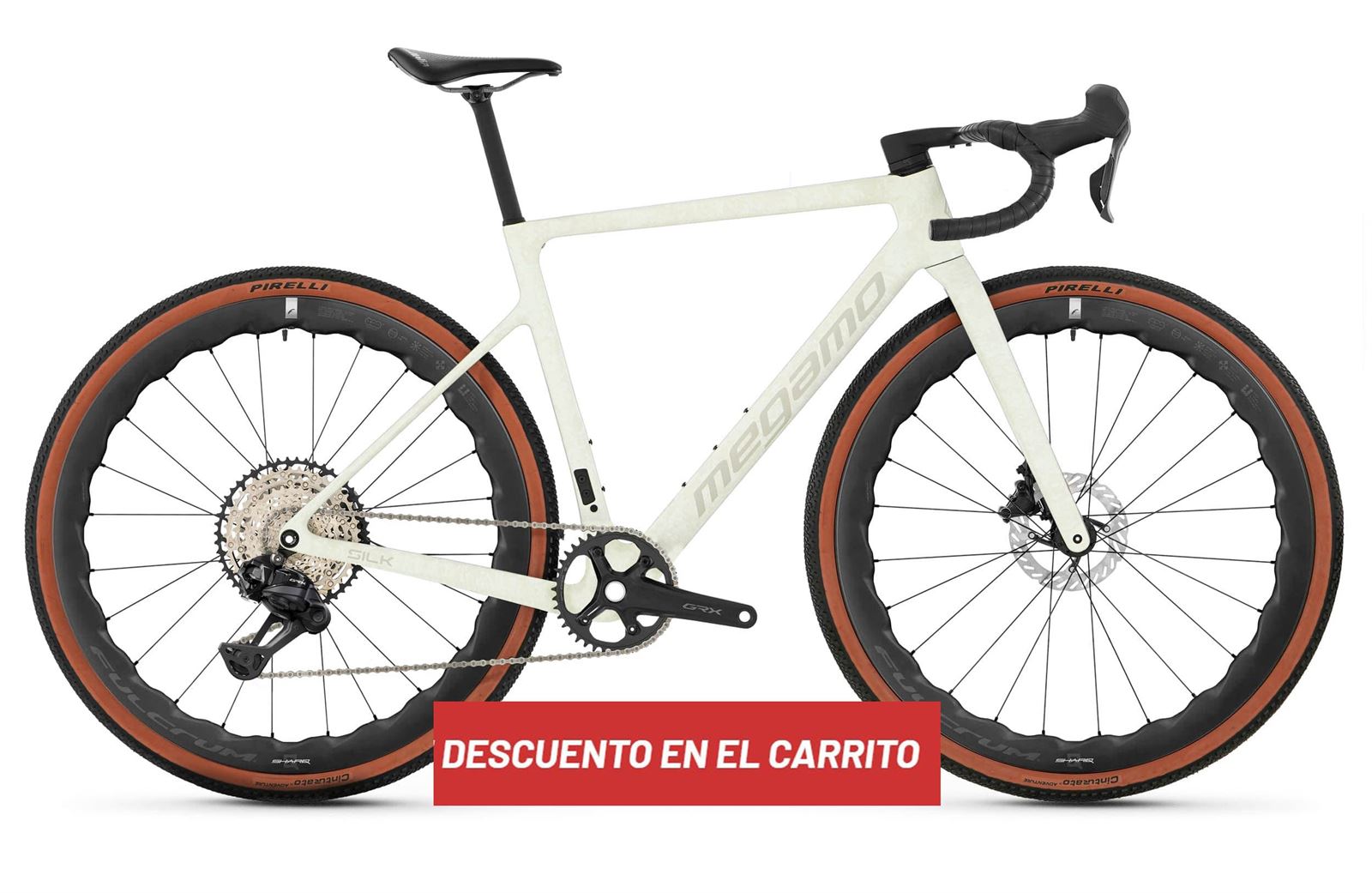

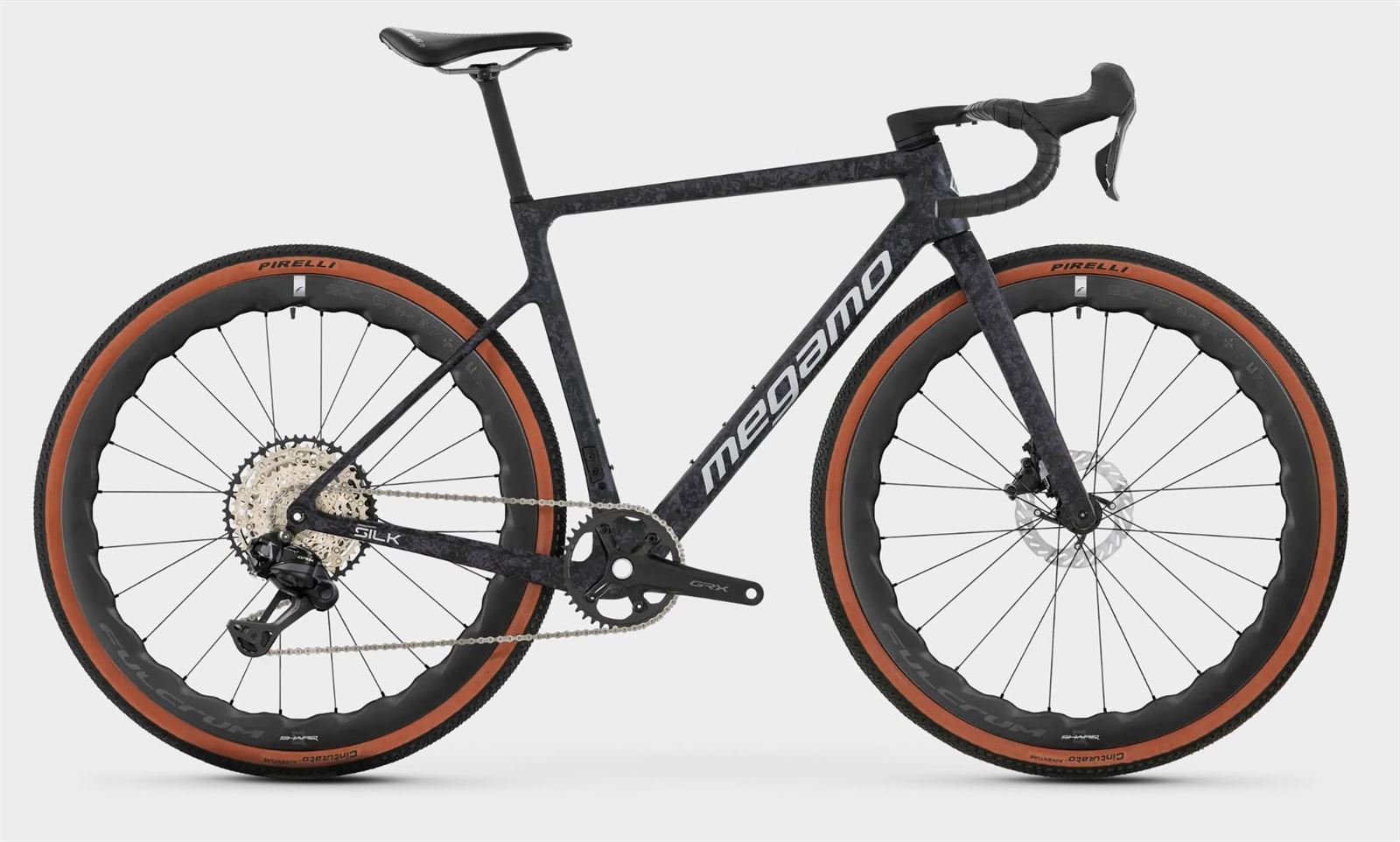

MEGAMO SILK 03 2026

Especificaciones técnicasCUADROIMPULSO RC Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X Ø41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur: Brazed-on Type Rear Derailleur: SRAM UDH Hanger type Max Chainring Compatibility: 46T-52T (Shimano) - 43T-48T (SRAM) Tire Clearance: ETRTO 622-42mm Material: Epoxy - HM-HS Carbon Fiber CompositeHORQUILLABianchi Impulso Integrated Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-42mm Steer tube Diameter: 1 1/8" Material: Epoxy - HM-HS Carbon Fiber CompositeDIRECCIONBianchi Custom Acros ICR (Internal Cable Rounting) Spacers:5 mm x1, 10mm x3 Headtube Cover: Bianchi Costum Compresion Ring: 1.125 Inch Top Bearing: Angular contact Bearing 42x52x7 + seal Bottom Bearing: Angular contact Bearing 40x52x7 + sealMANDOSSram RED AXS HRD Shift SystemCASSETTESram RED XPLR XG-1391, 10-46T Driver Body Interface: XDRCAMBIOSram RED XPLR AXSBIELASRED XPLR power meter Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61)PEDALIERSram DUB PressFit Road Wide 86.5 X Ø41CADENASram RED Flattop, PowerLock D1, SilverFRENOSSram RED Pad Type: Steel-Backed OrganicRUEDASReparto Corse 43G CeramitechCUBIERTASCinturato Gravel RC, 700 x 40c, 60TPI- TLR, Folding, Tan sidewallMANILLARReparto Corse AeroFlare Flare: 16° Drop: 120mm Reach 80mm Steerer Interface Diameter: 1 1/8" HandleBar Sizes: 90/400 (SX(47)) ; 100/400 (SM(51)); 110/420 (MD(55)-LG(58)); 120/440(XL(61)) Material: Epoxy - HM-HS Carbon Fiber CompositeCINTA DE MANILLARBianchi Arrow 2.5mm thickness, full blackTIJABianchi Custom D-Shape Offset: 20mm Back Seatpost lengths: 300mm-SX(47), 350mm- SM(51) MD(55), 380mm-LG(58) XL(61) Material: Epoxy - HM-HS Carbon Fiber CompositeSILLINBianchi RC139 carbon Cover: microfiber Inserts: PWR gel Shell: carbon fiber Rails: carbon fiber lenght: 250mm, wide: 139mm weight: 145gDISCOS DE FRENOSram Paceline X Rotor Hub Interface: Centerlock Rotor Diameter: 160 mm (front&Rear)

PLAZO DE ENTREGA: 7-10 DIASCUADROBianchi Specialissima PRO carbon HM with Bianchi CV System, only electronic groupsets, fully internal cable routing, headset Acros ICR, direct mount brakes, BB-PressFit 86.5x41 sizes 47-50-53-55-57-59HORQUILLABianchi Specialissima PRO full Carbon High Modulus aero with Bianchi CV System, integrated head, disc, 1.5 head, 12x100 mm thru axleDIRECCIONAcros IS52 Integrated Cable RoutingMANDOSram Force AXS E1CAMBIOSram Force AXS E1, 12spDESVIADORSram Force AXS E1BIELAS CON POTENCIOMETROSram Force E1, Quarq Power Meter, 48x35T Crank length: 165 mm (47-50 cm); 170 mm (53-55 cm); 172.5 mm (57-59 cm)CADENASram Force E1CASSETTESram Force XG 1270 E1, 10-33, 10-11-12-13-14-15-17-19-21-24-28-33TFRENOSSram Force E1, Hydraulic disc brakeRUEDASVelomann Palladium, Carbon rim, 33 mm profile, 700x21c, 24h, HG11 bodyCUBIERTASPirelli P Zero Race SL TLR, 28-622, 120 TPIMANILLAR INTEGRADOBianchi Specialissima PRO, carbonio High Modulus, aero, con Bianchi CV System, testa integrata 1,5", perno passante 12x100 mmCINTABianchi Arrow premium tape, 2.5 mm thickness, full blackTIJA DE SILLINBianchi Specialissima, full carbon, aero shape, 20 mm offset length: 280 mm (47 cm); 300 mm (50-53 cm); 350 mm (55-59 cm)SILLINVelomann Mitora 139 Lite, open flow, Carbon rails 7x9.1 mm, Carbon-reinforced nylon shell, length 250 mm, width 139 mm

PLAZO DE ENTREGA: 5-6 DIASFLAME AL 05 2026CARACTERÍSTICAS PRINCIPALES· Motor Bosch Performance Line CX, 5gen / 100Nm 750W· Batería integrada Bosch 800 Wh· Cuadro Flame AL, 160mm Wheel travel· Horquilla Fox 36 Performance 160mm de recorrido· Amortiguador Fox Float 2 posiciones· Transmisión Combo Shimano XT / Deore 12s· Frenos de disco hidráulicos Shimano XT de 4 pistones 203/203CuadroFull Integratted Battery, Aluminium 6061, 12x148 Boost, Horst Link 4, Wheel travel: 160 mm HorquillaFOX 36 Float Performance E-Bike Optimized, 160mm Travel, Grip, 3 Positions, QR Axle 15x110, 1.5 Tapered, 68HT, 44mm Offset, Matte Blk AmortiguadorFOX Float Performance, 230x60 mm, Evol LV, 2 Position Juego de direcciónAcros AZX-589 ZS56 blocklock 150º Componentes eléctricos MotorBosch Performance Line CX, 5gen BDU384Y, Smart System / 100Nm 750W BateríaBosch PowerTube 800 DisplayBosch Purion 200 Transmisión Cambio TraseroShimano XT M8100, Shadow Plus 12-Speed Manetas cambioShimano XT 8100, 12-Speed PlatoFSA Bosch Chainring 34T CL55 12-Speed, Crankset 320 165mm CassetteShimano XT M8100, 10-51T Frenos Conjunto de frenosShimano XT BR-M8120, hydraulic disc 4-Piston, 203/203mm Ruedas CubiertasMaxxis 29 x 2.5 Assegai front, 29 x 2.4 Minion DHR II rear BujesMegamo Hubs, Front axle 15 x 110 mm, Rear axle 12 x 148 mm BOOST EBIKE+ RuedasMegamo 29 SL 30 ASY - Micro, 30 mm Tubeless ready Aluminium rim Componentes ManillarMegamo Alloy Butted 31,8 x 800 mm, 12 mm Rise, 6º Back Sweep PotenciaSatori New Ursa 35 mm Tija sillínMegamo Ø 31,6mm telescopic seat post, remote adjustment S size 125 mm Drop / M size 150 mm Drop / L size 170 mm Drop SillínFizik Terra Aidon X5

PULSE 05 2026CARACTERÍSTICAS PRINCIPALES· Cuadro Pulse Carbon Advanced Composite Super Light UCI con cableado totalmente interno · Transmisión Shimano Ultegra Di2 2x12 velocidades· Ruedas Fulcrum Racing 800 DB 33,7mm CuadroCarbon Advanced Composite Super Light Frame, Full Internal Cable Routing, Flat mount disc 12x142 HorquillaCarbon Advanced Composite fork, Full Internal Cable Routing, Flat mount disc 12x100 Juego de direcciónTotally Internal Cable routing Transmisión Cambio TraseroShimano Ultegra Di2 R8150, Shadow 12-Speed DesviadorShimano Ultegra Di2 R8150, 2x12-Speed Manetas cambioShimano Ultegra Di2 R8170 PlatoShimano Ultegra R8100 Chainring 52-36T 2x12-Speed, Crankset / XS size 165 mm / S size 170 mm / M, L size 172,5 mm / XL size 175 mm CassetteShimano Ultegra R8100, 11-34T Frenos Conjunto de frenosShimano Ultegra Di2 R8170, Hydraulic disc RT-CL800 160 mm / 140 mm Ruedas CubiertasPirelli P Zero Race TLR Classic 622 x 30 Tan Sidewall BujesFulcrum Sealed cartridge bearings, Front axle 12 x 100 mm, Rear axle 12 x 142 mm RuedasFulcrum Racing 800 DB, 33.7mm 2-Way Fit Ready Aluminium rim Componentes ManillarCarbon Full Integratted Internal Cable Routing / XS size 80 x 380 mm / S size 90 x 400mm / M size 100 x 400 mm / L size 110 x 420 / XL size 120 x 440 mm Tija sillínAerodinamic Advanced Carbon Seat Post / XS, S, M size 350 mm / L, XL size 400 mm SillínSelle Italia Novus Boost Evo Superflow Titanium

PULSE 15 2026CARACTERÍSTICAS PRINCIPALES· Cuadro Pulse Carbon Advanced Composite Super Light UCI con cableado totalmente interno · Transmisión Shimano 105 Di2 2x12 velocidades· Ruedas Fulcrum Racing 800 DB 33.7mmComponentes GeometríaInformación técnica Conjunto del cuadro CuadroCarbon Advanced Composite Super Light Frame, Full Internal Cable Routing, Flat mount disc 12x142 HorquillaCarbon Advanced Composite fork, Full Internal Cable Routing, Flat mount disc 12x100 Juego de direcciónTotally Internal Cable routing Transmisión Cambio TraseroShimano 105 Di2 R7150, Shadow 12-Speed DesviadorShimano 105 Di2 R7150, 2x12-Speed Manetas cambioShimano 105 Di2 R7170 PlatoShimano 105 R7100 Chainring 52-36T 2x12-Speed, Crankset / XS size 165 mm / S size 170 mm / M, L size 172,5 mm / XL size 175 mm CassetteShimano 105 R7101, 11-34T Frenos Conjunto de frenosShimano 105 Di2 R7170, Hydraulic disc SM-RT70 160 mm / 140 mm Ruedas CubiertasPirelli P Zero Race TLR Classic 622 x 30 Tan Sidewall BujesFulcrum Sealed cartridge bearings, Front axle 12 x 100 mm, Rear axle 12 x 142 mm RuedasFulcrum Racing 800 DB, 33.7mm 2-Way Fit Ready Aluminium rim Componentes ManillarCarbon Full Integratted Internal Cable Routing / XS size 80 x 380 mm / S size 90 x 400mm / M size 100 x 400 mm / L size 110 x 420 / XL size 120 x 440 mm Tija sillínAerodinamic Advanced Carbon Seat Post / XS, S, M size 350 mm / L, XL size 400 mm SillínSelle Italia Novus Boost Evo Superflow FeC

RAISE 15 2026CARACTERÍSTICAS PRINCIPALES· Cuadro Raise Carbon Advanced Composite Super Light UCI con cableado totalmente interno · Transmisión Shimano 105 Di2 2x12 velocidades· Ruedas Fulcrum Racing 800 DB 33.7mm CuadroCarbon Advanced Composite Super Light Frame, Full Internal Cable Routing, Flat mount disc 12x142 HorquillaCarbon Advanced Composite fork, Full Internal Cable Routing, Flat mount disc 12x100 Juego de direcciónTotally Internal Cable routing Transmisión Cambio TraseroShimano 105 Di2 R7150, Shadow 12-Speed DesviadorShimano 105 Di2 R7150, 2x12-Speed Manetas cambioShimano 105 Di2 R7170 PlatoShimano 105 R7100 Chainring 52-36T 2x12-Speed, Crankset / XS size 165 mm / S size 170 mm / M, L size 172,5 mm / XL size 175 mm CassetteShimano 105 R7101, 11-34T Frenos Conjunto de frenosShimano 105 Di2 R7170, Hydraulic disc SM-RT70 160 mm / 140 mm Ruedas CubiertasPirelli P Zero Race TLR Classic 622 x 30 Tan Sidewall BujesFulcrum Sealed cartridge bearings, Front axle 12 x 100 mm, Rear axle 12 x 142 mm RuedasFulcrum Racing 800 DB, 33.7mm 2-Way Fit Ready Aluminium rim Componentes ManillarCarbon Full Integratted Internal Cable Routing / XS size 80 x 380 mm / S size 90 x 400mm / M size 100 x 400 mm / L size 110 x 420 / XL size 120 x 440 mm Tija sillínAerodinamic Advanced Carbon Seat Post / XS, S size 350 mm / M, L, XL size 400 mm SillínSelle Italia Novus Boost Evo Superflow FeC
