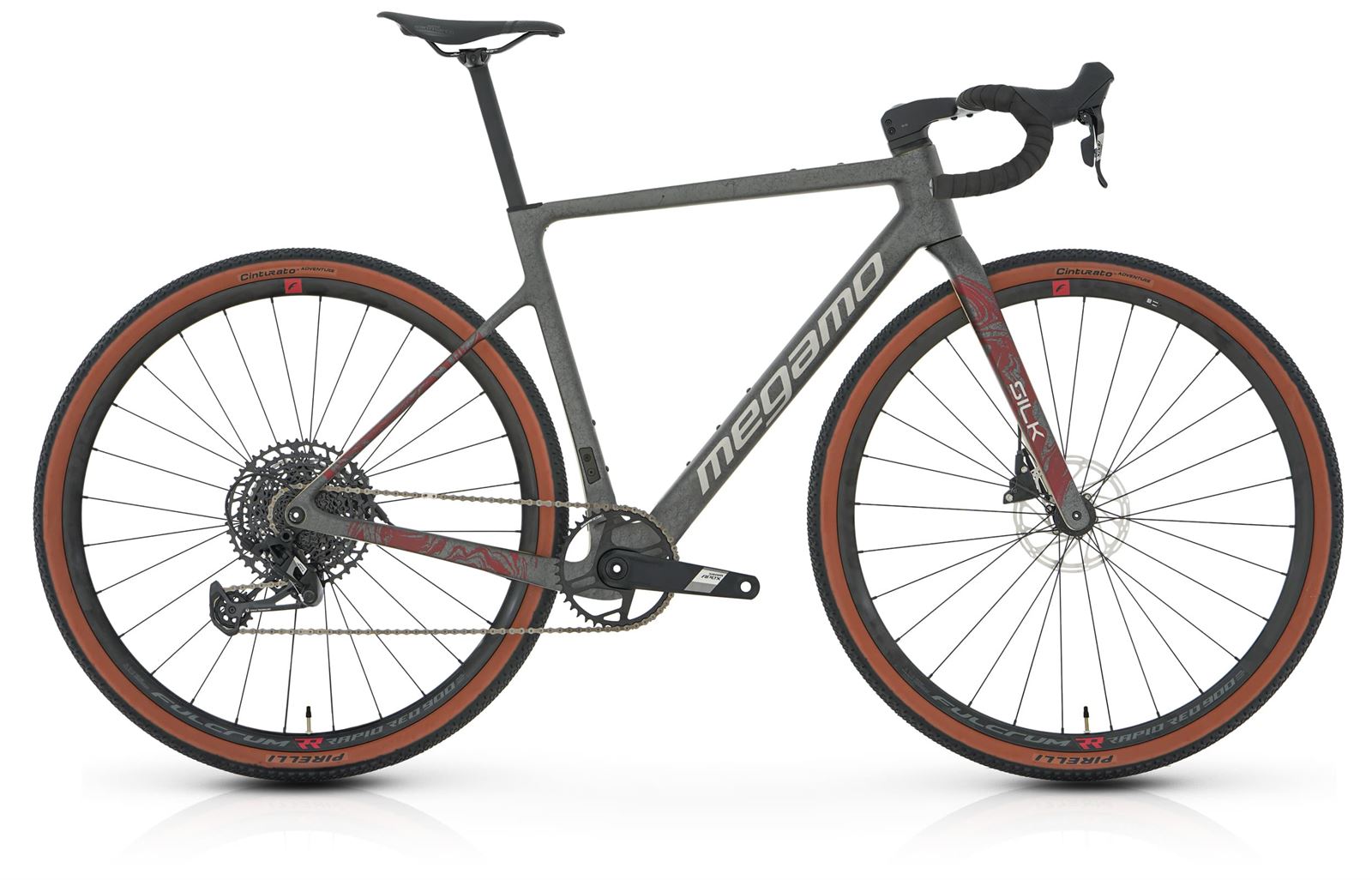

MEGAMO SILK 10 2025

Especificaciones técnicasCUADROIMPULSO RC Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X Ø41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur: Brazed-on Type Rear Derailleur: SRAM UDH Hanger type Max Chainring Compatibility: 46T-52T (Shimano) - 43T-48T (SRAM) Tire Clearance: ETRTO 622-42mm Material: Epoxy - HM-HS Carbon Fiber CompositeHORQUILLABianchi Impulso Integrated Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-42mm Steer tube Diameter: 1 1/8" Material: Epoxy - HM-HS Carbon Fiber CompositeDIRECCIONBianchi Custom Acros ICR (Internal Cable Rounting) Spacers:5 mm x1, 10mm x3 Headtube Cover: Bianchi Costum Compresion Ring: 1.125 Inch Top Bearing: Angular contact Bearing 42x52x7 + seal Bottom Bearing: Angular contact Bearing 40x52x7 + sealMANDOSSram RED AXS HRD Shift SystemCASSETTESram RED XPLR XG-1391, 10-46T Driver Body Interface: XDRCAMBIOSram RED XPLR AXSBIELASRED XPLR power meter Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61)PEDALIERSram DUB PressFit Road Wide 86.5 X Ø41CADENASram RED Flattop, PowerLock D1, SilverFRENOSSram RED Pad Type: Steel-Backed OrganicRUEDASReparto Corse 43G CeramitechCUBIERTASCinturato Gravel RC, 700 x 40c, 60TPI- TLR, Folding, Tan sidewallMANILLARReparto Corse AeroFlare Flare: 16° Drop: 120mm Reach 80mm Steerer Interface Diameter: 1 1/8" HandleBar Sizes: 90/400 (SX(47)) ; 100/400 (SM(51)); 110/420 (MD(55)-LG(58)); 120/440(XL(61)) Material: Epoxy - HM-HS Carbon Fiber CompositeCINTA DE MANILLARBianchi Arrow 2.5mm thickness, full blackTIJABianchi Custom D-Shape Offset: 20mm Back Seatpost lengths: 300mm-SX(47), 350mm- SM(51) MD(55), 380mm-LG(58) XL(61) Material: Epoxy - HM-HS Carbon Fiber CompositeSILLINBianchi RC139 carbon Cover: microfiber Inserts: PWR gel Shell: carbon fiber Rails: carbon fiber lenght: 250mm, wide: 139mm weight: 145gDISCOS DE FRENOSram Paceline X Rotor Hub Interface: Centerlock Rotor Diameter: 160 mm (front&Rear)

PLAZO DE ENTREGA 7-10 DÍASCUADROOltre PRO carbon w/Bianchi CV System aero shape, electronic drivetrain only, headset 1.1/4"-1.1/4",BB-PressFit 86,5x41mm, integrated seat clamp, for flat mount caliper, internal cable routing for disc brakes, thru axle 12x142mmHORQUILLAFull Carbon aero w/Bianchi CV System, Disc brakes, integrated head 1.1/4", flat mount caliper, thru axle 12x100mmDIRECCIONFsa No. 54 - MR137 - ACB 1-1/4"diam.46.9x diam.37x7 Fsa TH970E - MR168 - Alloy ACB 1-1/4"diam.46.8x diam.34x7MANDOSSram Force eTap AXS D2 Hydraulic Disc BrakeCAMBIOSram Force eTap AXS D2 12spDESVIADORSram Force eTap AXS D2BIELASSram Force D2 12sp, 48/35, Crank Length: 170mm-47/54cm, 172.5mm-55/59cmPEDALIERSram Press fit Road 86,5x41CADENASram Force D1 12spFRENOSSram included in the shifterDISCOSSram centerlock centerline x Road 160mmRUEDASVelomann Plutonium, 50mm profile, 700x21c, 24h, XDR bodyMANILLARIntegrated handlebar Integrated Aero bar, material Carbon, drop 125mm, reach 80mm, Di2 compatible Ext: 90x400-47/50cm ; 100x420-53cm ; 110x420-55/57cm; 120x440-59/61cm Oltre RC custom handlebar clamp Oltre RC handlebar cap cover w/magnet Computer mountPOTENCIAincluded in the stemCINTA MANILLARVelo soft Microfiber tape, blackTIJAOltre Full Carbon Aero special dimension seatpost, 20mm offset, length: 280mm-47cm, 300mm-50/53/55cm, 350mm-59cmSILLINVelomann Mitora139 Hyper, open flow, carbon rails, carbon-reinforced nylon, Large 139mm Lenght 250mm

Cuadro: Adrenaline SL - G2 Carbon Concept Lite Frame. High Modulus Carbon Fiber. Monocoque. TA 12mm. Fully Internal Cable Routing. Flat Mount. E+ Compatible. Press Fit. Headtube 1.5Horquilla: Adrenaline SL - G2 Carbon Concept Lite Fork. TA 12mmTransmisiónCambio: Shimano Ultegra Di2 R8150 12VDesviador: Shimano Ultegra Di2 R8150 12VBielas: Shimano Ultegra R8100 52/36T 12VCassette: Shimano Ultegra R8100 11/34 12VCadena: Shimano M7100 12VFrenos: Shimano Ultegra Di2 R8170 160mmRuedas y neumáticos:Ruedas: DT SWISS ERC 1400 45mmCubiertas: Michelin Power Cup Road 28mmOtros componentesPotencia: FSA NS ST ALU ACRManillar: FSA SL-K CarbonTija: FSA SL-K SPSillín: Selle Italia SLR Boost Kit Carbon SuperFlow

JAKAR BASE 2026CARACTERÍSTICAS PRINCIPALES· Edad y altura recomendada: 9-14 años / 130-160 cm· Cuadro de aluminio AL 6061 con guiado interno y frenos Flat Mount· Horquilla AL Disc con eje 9 x 100 mm QR· Transmisión Shimano 1x8 velocidades· Frenos de disco mecánicos Shimano RS305Componentes GeometríaInformación técnica Conjunto del cuadro CuadroGravel Base AL 6061 Triple Butted, Hydroformed Technology, Internal Cable Routing, Flat Mount Disc, 9 x 135 mm QR HorquillaAL Disc Fork, Internal Cable Routing, Flat Mount, 9 x 100 mm Axle with Quick Release Juego de direcciónFSA Orbit C-40-ACB, 1-1/8" - 1.5'' Transmisión Cambio TraseroShimano ESSA U2000, Shadow 8-Speed Manetas cambioShimano ESSA U2030, 8-Speed PlatoMegamo Chainring 38T, Crankset 165mm CassetteShimano HG300, 11-45T Frenos Conjunto de frenosShimano RS305 Disc 2-Piston, 160mm Ruedas CubiertasWTB Riddler 700 x 45c Tan Sidewall BujesMegamo Hubs, Front Axle 9 X 100 mm QR, Rear Axle 9 x 135 mm QR RuedasMegamo 29 FW Disc Aluminium rim Componentes ManillarMegamo Alloy 31,8 x 360 mm Tija sillínMegamo Ø 27,2 mm, 300 mm SillínMegamo Gravel Junior

CARACTERÍSTICAS PRINCIPALES· Nuevo cuadro de Aluminio específico para Gravel· Horquilla de carbono específica para Gravel· Transmisión Shimano GRX 2x10 velocidades· Frenos de disco hidráulicos Shimano GRX-400Información técnica Conjunto del cuadro CuadroNew* Gravel AL 6061 Triple Butted, Hydroformed Technology, Internal Cable Routing, Flat Mount Disc 12x142 HorquillaCarbon Disc Fork, Internal Cable Routing, Flat Mount Disc 12x100 Juego de direcciónFSA Orbit - Z 1-1/8" Semi Integrated Transmisión Cambio TraseroShimano RX-400 10s DesviadorShimano RX-400 2x10s Manetas cambioShimano RX-400 Flat mount hydraulic disc PlatoFC 46-30t CassetteShimano HG50 11-36t 10s Frenos Conjunto de frenosShimano RX-400 Flat mount hydraulic disc Ruedas CubiertasWTB Riddler 700 x 45c Tan Sidewall RuedasMegamo Gravel GR 700 - TLR Componentes ManillarMegamo Specific Gravel HB FOV Compact PotenciaMegamo FOV Tija sillínMegamo 27,2mm SillínSelle Italia Model X*Megamo se reserva el derecho a modificar cualquier componente, por uno de igual valor en caso de ser necesario, sin previo aviso.

CARACTERÍSTICAS PRINCIPALES· Cuadro Track Full Carbon Construction FSC Technology BB92 Carbon Swingarm Boost 12x148mm SuperLight version· Horquilla Fox 34 SL Factory StepCast Kashima 130mm· Amortiguador Fox DPS Factory Kashima,120mm Travel 190x45mm, Evol SV, 3 posiciones con control Remoto· Transmisión Shimano XT Di2 M8250 de 12 velocidades· Ruedas DT Swiss XRC 1501 Carbon 30· Frenos Shimano XT 9200· Tija telescopica Fox Transfer SL Kashima with internal cable routing· Manillar Integrado Carbono Megamo CuadroFull Carbon Construction FSC Technology BB92 Carbon Swingarm Boost 12x148mm Super Light Race version HorquillaFox 34 Float SL Factory, 130mm Travel, Grip SL, Remote Push to Lock, Kabolt SL Axle x 110, 1.5 Tapered, 58HT, 44mm Offset AmortiguadorFox Float DPS Factory Kashima, 3 positions Remote Lockout control, Evol SV Megamo Custom Reb. Adj. Travel 120mm 190x45mm Juego de direcciónIntegrated Full Internal Cable Routing Transmisión Cambio TraseroShimano XT Di2 M8250, 12-Speed Manetas cambioShimano XT Di2 M8250, I-SPEC EV PlatoShimano XT M8200 Chainring 32T 12-Speed, Crankset / S size 170mm / M, L, XL size 175mm CassetteShimano XT M8200, 10-51T Frenos Conjunto de frenosShimano XT M8220 Hydraulic Disc 4-Piston RT-CL800 180 mm / 160 mm Ruedas CubiertasPirelli Scorpion XC H Prowall 29 x 2.4 BujesDT Swiss 240 Ratchet EXP 36, Front axle 15 x 110mm, Rear axle 12 x 148mm BOOST RuedasDT Swiss XRC 1501 SPLINE, 30mm Tubeless ready Carbon rim Componentes ManillarFull Integrated Carbon Handlebar / S, M size 60 x 760 mm / L, XL size 80 x 760 mm Tija sillínFox Transfer Kashima SL 31,6mm telescopic seat post, remote adjustment S size 75 mm Drop / M, L size 100 mm Drop / XL size 125 mm Drop SillínFizik Vento Argo X1
